JM-G2032A is a 2 MP IP zoom module with a 4.8–154 mm lens and 32× optical zoom. Its host must provide the mounting, enclosure, power and required interface connections.
JM-G2032A is a 2 MP IP zoom module with a 4.8–154 mm lens and 32× optical zoom. The table lists up to 1920 × 1080 output, H.265/H.264/MJPEG choices, ONVIF Profile S/G/T, GB/T28181, audio and alarm I/O, RS485/RS232, microSD storage up to 512 GB, DC 12 V power and a 98.46 × 51.3 × 67 mm body.
JM-G2032A is a module; the host supplies enclosure and mounting. Start with 2 MP/32× host task.
Define 2 MP/32× host task before encoding or storage choices.
The stated use is integration into camera assemblies used in fields such as petrochemical and electrical projects. That scope does not establish compatibility with a particular housing, recorder, VMS or PTZ assembly.

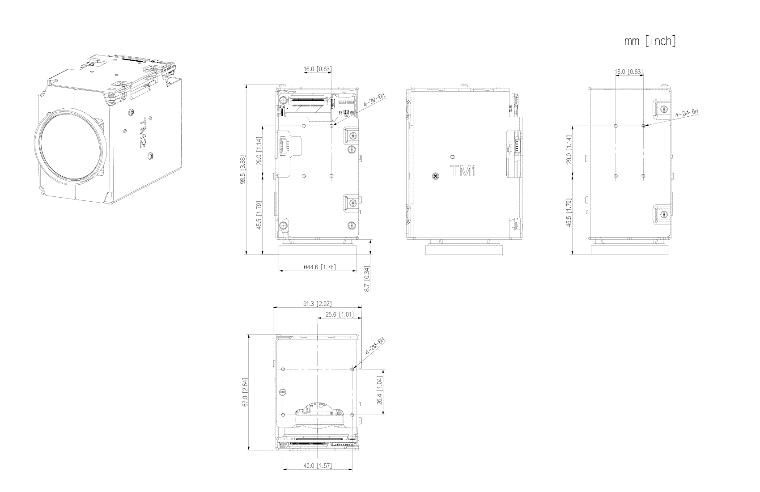

Place 98.46 × 51.3 × 67 mm plus cables on the host drawing with lens and cable clearance.
Draw the JM-G2032A DC 12 V, network, serial and I/O connections on the host schematic, including connector orientation and the lines that will remain unused.
Allocate module power in the host design. The surrounding enclosure must provide the required sealing and thermal management.
Send the 2 MP/32× host task, the 98.46 × 51.3 × 67 mm envelope plus cables, and the required DC 12 V, network, serial and I/O connections. Identify which preset and control functions the host will use.
| Camera | |
| Image Sensor | 1/2.8″ CMOS |
| Pixel | 2MP |
| Max resolution | 1920×1080 |
| Electronic shutter | 1/1s～1/30000s |
| Min illumination | Color：0.005lux/F1.6；B/W：0.0005lux/F1.6 |
| Fill light control | Magnification Priority/Manual/SmartIR/Off |
| Len | |
| Lens focal length | 4.8mm～154mm |
| Lens aperture | F1.6～F4.0 |
| Field of view | Pan：55.8°~2.3°；tilt：31.9°~1.3°；diagonal：63.7°~2.7° |
| Optical zoom | 32X |
| Focus Mode | Automatic/semi-automatic/manual |
| Close-up distance | 0.1m～1.5m |
| PTZ | |
| Preset Point | JM-SD1: 80 presets; Pelco D/P: 255 |
| Automatic cruise control | 8 lines, each line can add 32 preset points |
| Automatic patrol | 5 |
| Automatic line scan | 5 |
| Power off memory | support |
| Idle Actions | Preset point; Patrol; Cruise; Line scan |
| PTZ Protocol | JM-SD1Pelco-P/D(Auto recognition) |
| Scheduled tasks | Preset point; Patrol; Cruise; Line scan |
| Preset point video freeze | Support |
| 3D Positioning | Support |
| Visibility function | Support |
| video | |
| Video compression standards | Smart H.265;H.265;Smart H.264;H.264;H.264B;H.264H;MJPEG |
| Default bitrate at default resolution | 4096Kbps（1080P） |
| Video frame rate | 50Hz main stream (1920×1080@25fps), main stream (1280×960@25fps), main stream (1280×720@25fps) Sub-stream 1 (704×576@25fps), sub-stream 1 (640×480@25fps), sub-stream 1 (352×288@25fps) Sub-stream 2 (1920×1080@25fps), sub-stream 2 (1280×960@25fps), sub-stream 2 (1280×720@25fps) 60Hz main stream (1920×1080@30fps), main stream (1280×960@30fps), main stream (1280×720@30fps) Sub-stream 1 (704×480@30fps), sub-stream 1 (640×480@30fps), sub-stream 1 (352×240@30fps) Sub-stream 2 (1920×1080@30fps), sub-stream 2 (1280×960@30fps), sub-stream 2 (1280×720@30fps) |
| Stream Control | Variable bitrate/fixed bitrate |
| Day / Night | ICR automatic switching/electronic color to black |
| Backlight compensation | support |
| Wide dynamic range | support |
| Strong light suppression | support |
| White Balance | Automatic/Indoor/Outdoor/Tracking/Manual/Sodium Lamp/Natural Light/Street Light |
| Gain Control | Automatic/Manual |
| Noise Reduction | 2D Noise Reduction/3D Noise Reduction |
| Region of Interest (ROI) | support |
| Image stabilization | Electronic image stabilization |
| Defogging function | Electronic fog penetration |
| Digital zoom | 16X |
| Privacy Mask | Up to 24 polygonal areas, with up to 8 areas on the same screen at the same time; supports multiple colors to choose from |
| Signal-to-Noise Ratio | ≥55dB |
| Audio | |
| Audio compression standards | PCM；G.711A；G.711MU；G.726；AAC；MPEG2-Layer2；G.722.1 |
| network | |
| Network Interface | 1 (bare wire network port, supports 10M/100M network data) |
| Network Protocol | HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;SNMPv1/v2c/v3(MIB-2);IGMP;ARP;RTCP;RTP;PPPoE;IP Filter;RTMP;Bonjour;TCP;SMB;NFS |
| Access Standards | GB/T28181;ONVIF（Profile S & Profile G & Profile T）;CGI;;RTMP;P2P |
| Preview max number of users | 20 |
| Storage function | FTP; Micro SD card (up to 512G) |
| Browser | Support IE: IE7 and above Support Google: 42 and below Support Firefox: 52 and below Support Apple: no version restrictions |
| Docking Platform | Smart PSS;configtool |
| Function | |
| SVC | Time Domain |
| Regional Focus | support |
| OSD information overlay | Channel; time; preset point; temperature; PTZ coordinates; zoom; true north direction; patrol track; geographic location; picture |
| Safe Mode | Authorized username and password; MAC address binding; HTTPS encryption; IEEE802.1x; network access control |
| User Management | 32-bit |
| Interface | |
| Analog output interface | 1 channel (CVBS output) |
| RS-485 interface | 1 (Baud rate range: 1200bps~9600bps) |
| Audio Input | 1 |
| Audio Output | 1 |
| Alarm input | 1，Switch input（0~5V DC） |
| Alarm output | 1 |
| Alarm linkage | Capture; preset points; cruise; patrol tracks; video recording; alarm switch output; send email |
| Alarm Events | Video dynamic/occlusion detection; network disconnection detection; IP conflict detection; memory card status detection; storage space detection |
| power supply | |
| Power supply | DC12V/1A±10% |
| environment | |
| Operating temperature | -40℃~+70℃ |
| Operating humidity | ≤95% |
| structure | |
| Product size | 98.46mm×51.3mm×67mm（L×W×H） |
| Package size | 145mm×145mm×109mm（L×W×H） |
| N.W. | 0.320kg |
| G.W. | 0.428kg |
| Others | |
| Interface Type | BNC interface; RJ45 interface; RS485 interface; RS232 interface |
| H.265 | support |
| Star Level | Starlight |
Compare JM-G2032A with units in the Camera Module category against the 2 MP/32× host task. Check the 98.46 × 51.3 × 67 mm body, cable space, DC 12 V supply and required network or serial functions as one integration package.
Begin with 2 MP/32× host task.
For JM-G2032A, map DC 12 V, network, serial and I/O lines to the host schematic and the required control functions.
Show 98.46 × 51.3 × 67 mm plus cables, cables and clearances.
Keep any function not clearly defined by the retained table outside the order until it receives written confirmation.
The image requirement starts with 2 MP output and the 4.8–154 mm, 32× lens. Choose the needed stream format, storage and control functions from the retained table after that task is clear. The module is not a finished camera, so no housing or PTZ fit should be inferred from its optical specification.
Reserve at least the stated 98.46 × 51.3 × 67 mm body envelope, then add cable and lens clearance. Draw connector access and the direction in which the assembly will be installed. The host is responsible for mounting, environmental sealing and the thermal conditions around the module.
Show DC 12 V, network, RS485/RS232, audio, alarm and any used I/O on the host schematic. Only connected functions should enter the bill of materials. ONVIF Profile S/G/T, GB/T28181 and microSD capacity up to 512 GB can be checked against the system plan without promising a particular third-party platform.
Review the optical task, body envelope and connector schedule as one host design. Make sure the enclosure provides the missing environmental protection and that DC 12 V reaches the module correctly. Any host-specific fit or function not established by the retained table requires its own engineering confirmation.
Use Contact Us to send the 2 MP/32× host task, the drawing and required functions. Note any unresolved interface or control requirement separately.
