WL-HA988 is a spherical multi-spectral PTZ platform with visible, thermal and laser functions. Select one documented C, E or F variant before planning its 95 kg support and control route.

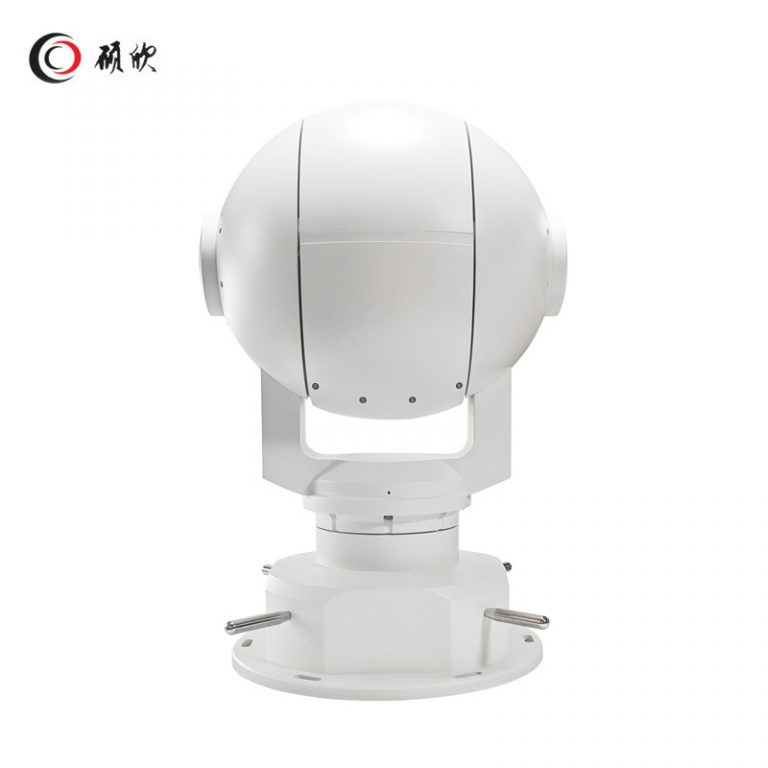

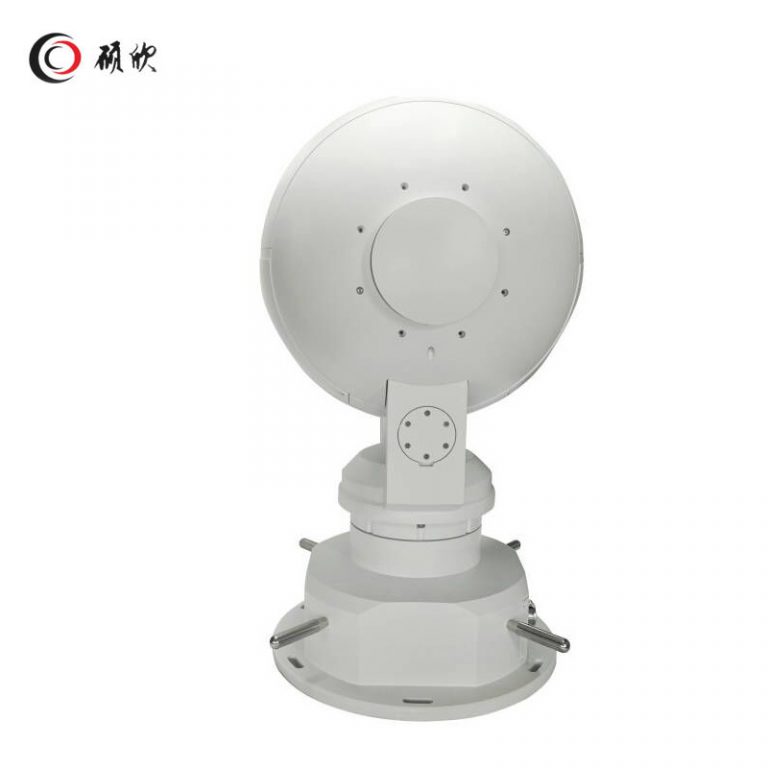

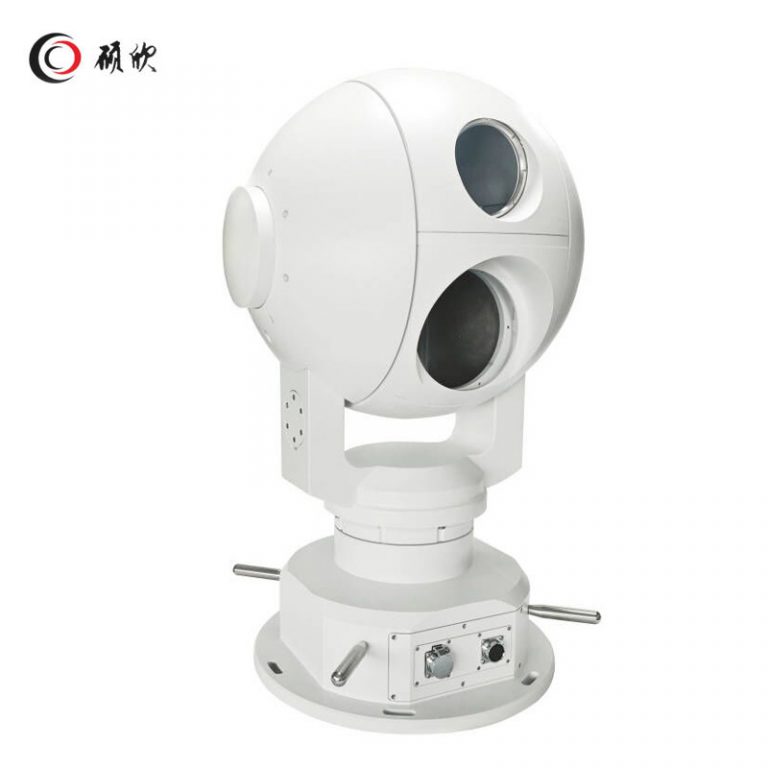

WL-HA988 combines visible imaging, thermal imaging and laser illumination in a spherical PTZ. Autofocus, linked lens and laser-angle control, thermal polarity modes, continuous pan, RS485/TCP/IP, 256 presets and nine cruise lines are listed. The table separates WL-HA988C, WL-HA988E and WL-HA988F optical and thermal choices.
Select WL-HA988 around one C/E/F variant. Define that task before comparing options.
Build the operator sequence around one C/E/F variant; state the view, detail and mode change needed.
The product scope covers oil or pipeline surveillance, borders, coasts, waterways, ports, reservoirs, forest-fire prevention, high points, transport routes and airports. None of those labels selects a C, E or F variant; the optical and thermal task must do that.
Put 95 kg support and service space on the drawing and leave unresolved mechanics pending.
Map RS485 or TCP/IP to host functions one by one rather than relying on names.
Check installed power and cabling; keep customized ranging/tracking separate until confirmed.
Send one C/E/F variant, 95 kg support and service space and RS485 or TCP/IP; flag customized ranging/tracking for confirmation.
| Model | WL-HA988C | WL-HA988E | WL-HA988F | ||
| Laser light source | Laser | 12W | 17W | 20W | |
| Illumination angle | 1°～60°Square light spot | ||||
| Laser wavelength | 810nm （940/980nm optional ） | ||||
| Laser zoom | Lens magnification is linked to laser irradiation angle | ||||
| camera | Imaging device | 1/1.8″ CMOS | |||
| Pixel | 2mp/3mp/6mp（optional） | ||||
| AI | Supports intelligent analysis functions such as trip wires and restricted areas, and reports alarms through national standards | ||||
| scanning method | 1:1 line-by-line scan | ||||
| Minimum illumination | 0.001Lux (color):0.0001Lux (B/W) | ||||
| signal-to-noise ratio | >120dB | ||||
| Day / Night | ICR Infrared filter type | ||||
| HD lens | Image size | 1/2″ | |||
| focal length | 6.5～240mm | 6.1～317mm | 10.5～945mm | ||
| Optical zoom | 37× | 52× | 90X | ||
| Auto focus | Optional | ||||
| penetrating fog | Support (optional) | ||||
| Thermal image | Detector | Uncooled focal plane 384 × 288 (640 × 512 optional) | |||
| AI | Support intelligent analysis functions such as trip lines and restricted areas, and report to the police through national standards | ||||
| Focus | 75 mm
25～75 mm |
100 mm
20～100 mm |
150 mm
30～180 mm |
||
| Working band | 7～14μm | ||||
| Focus Mode | Automatic/manual focusing | ||||
| Polarity transformation | Black heat/white heat/multiple pseudo color conversions | ||||
| Dome turntable | load | Dome built-in | |||
| Pan angle | 0°～360°endless rotation | ||||
| Tilt angle | -45°～+45° | ||||
| Pan rotation speed | 0.1°～40°/s | ||||
| Tilt rotation speed | 0.1°～40°/s | ||||
| Preset position | 256，Support power outage memory function | ||||
| cruise line | 9 cruise lines | ||||
| Protective cover | Integrated spherical full seal design, anti salt spray PH value 6.5~7.2, continuous spray for 48 hours | ||||
| Lightning protection level | 6KV surge with multi-level lightning protection | ||||
| Protection grade | IP66 | ||||
| network interface | 1 RJ4510M/100M adaptive Ethernet port, 1 RS-485 interface | ||||
| Working temperature | -40℃～70℃ | ||||
| Supply voltage | AC220VDC48 | ||||
| Dimension | 550mm × 550mm×995mm（L×W×H） | ||||
| Power Consumption | ≤200W | ||||
| weight | 95KG | ||||
Related products are grouped in the New Product category. Compare the imaging task, mounting, power and control route together rather than selecting on one distance or zoom figure.
Begin with one C/E/F variant.
Check RS485 or TCP/IP against required host functions.
Show 95 kg support and service space, cables and clearances.
Keep customized ranging/tracking unresolved until written confirmation.
The existing table separates WL-HA988C, WL-HA988E and WL-HA988F. Put one suffix on the request and carry its listed optical and thermal choices through the rest of the document. Mixing cells from the three columns would create a configuration that the current evidence does not define.
A 95 kg assembly needs a support plan before controls are discussed. Show the bearing surface, fasteners, service approach and unobstructed movement area. The spherical housing also needs access for cabling and maintenance; these spaces belong on the project drawing rather than in a generic product assumption.
Decide whether RS485 or TCP/IP will carry each required operation, then identify the receiving endpoint. Ranging and tracking are described as customized functions. They should be placed in a separate option request with their required behavior, not folded into the selected C, E or F variant by default.
The last review has three anchors: one variant suffix, one support drawing and one control route. Check that the optical/thermal choice comes from the same table column and that service access is shown for the 95 kg unit. Customized ranging or tracking remains outside the base build unless the written response adds it.
The request should also state how presets and cruise lines will be used, because the page lists 256 presets and nine cruise lines. Those functions may be planned after the C, E or F hardware choice is fixed. They do not justify moving a lens or thermal option between variant columns, and they do not turn customized tracking into a standard feature.
Use Contact Us to send one C/E/F variant, the drawing and required functions. Identify customized ranging or tracking as pending and state the available service approach.
