Product Name: IR VEHICLE PTZ camera
Model: WL-HD-TW10(HD IP)
night vision distance :150m
2mp 33x visible camera can be used for police mobile law enforcement , fire emergency command , emergency command system ,road mobile patrol ,urban management law enforcement ,special vehicle mobile inspection
Features:
Application: vehicle, marine surveillance, law enforcement vehicle,emergency vehicle, fire control vehicle, ambulance vehicle. It is great solution for mobile surveillance.

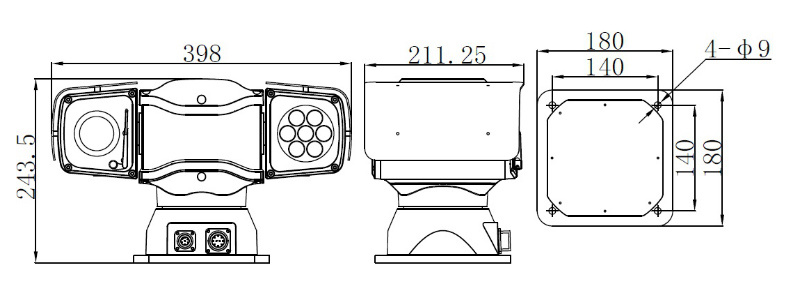

Dimension:
Product Technical Data:
| Model No. | WL-HD-TW10(HD IP) |
| Visible Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective pixels | 1920(H) x 1080(V), 2 Megapixels; |
| Minimum Illumination | Color:0.001 Lux @(F1.5,AGC ON);B/W:0.0005Lux @(F1.5,AGC ON) |
| Focal Length | 5.5-180mm |
| Optical Zoom | Optical Zoom 33x, 16x digital zoom |
| Aperture Range | F1.5-F4.0 |
| Horizontal field of view | 60.5-2.3°（wide-tele） |
| Minimum Working distance | 100mm-1000mm (wide-tele) |
| Zoom speed | Approximately 3.5s(optical lens, wide to tele) |
| Video Compression | H.265 / H.264 / MJPEG |
| Image settings | Corridor mode, saturation, brightness, contrast, sharpness adjusted by IE/ Client |
| Day/Night Switch | Automatic, manual, timing, alarm trigger |
| 3D noise reduction | Support |
| Interface Protocol | ONVIF(PROFILE S,PROFILE G) |
| Smart detection | Cross-border detection, area intrusion detection, entering / leaving area detection, hovering detection, personnel gathering detection, fast motion detection, parking detection / take detection, scene change detection, audio detection , False focus detection, face detection |
| Day/Night Switch | Automatic, manual, timing, alarm trigger |
| IR distance | 150m |
| PTZ | |
| Pan preset speed | 100°/s |
| Tilt preset speed | 60°/s |
| Pan control speed | 0°~60°/S |
| Tilt control speed | 0°~40°/S |
| Pan range | 360°endless rotation |
| Tilt range | +90° ~ -90° |
| Preset positions、Tracking | 256 positions 8 tracking |
| IR Distance | 2 groups lens, 150m night vision |
| Control Way | RS485, Built-in PELCO D/P 16 protocol, Baud Rate from 2400Bps to 19200Bps optional |
| Relative Humidity | Less than 90% |
| IP Grade | IP66 |
| Working Temperature | -35° ~ +55° |
| Impact resistance requirements | ≥4G |
| Wiper | Support |
| Installation | Variety of installation according to the environment |
| Weight | 7kg |
