Tilt Range Capabilities of PTZ Cameras for Outdoor Surveillance Applications

PTZ cameras with strong tilt action are a game-changer for outdoor surveillance, swinging from straight up to straight down (-90° to +90°) to catch everything, no matter the terrain. SHUOXIN’s Spherical and Bi-spectral cameras handle tough weather with IP66 protection and pack cool extras like thermal imaging and radar hookups. Fast tilt speeds, custom options, and easy integration make them perfect for maritime patrols, border checks, or factory yards.

Tilt Functionality in PTZ Cameras: Definition and Mechanics

In a pan-tilt-zoom (PTZ) camera, the word tilt describes how the lens moves vertically. This motion lets the camera look both upward and downward in a monitored area. Along with pan (the sideways or horizontal movement) and zoom (magnification of the image), tilt creates the main foundation of a PTZ system’s flexible viewing ability.

The tilt action is powered by small motors. These motors are carefully built and controlled by specific software commands. This design allows the camera to follow preset positions, move smoothly between different angles, and track objects in real time.

The tilt coverage is usually written in degrees. For example, a tilt range of +90° to -90° means the camera can point directly above itself and also straight down. A full vertical sweep like this is very valuable in outdoor settings where elevation changes are large, such as along cliffs, mountain borders, or tall towers.

Importance of Tilt Range for Outdoor Surveillance Coverage

For outdoor surveillance, tilt movement is critical. In areas with uneven ground or elevated highways, wide vertical coverage prevents blind spots. Imagine monitoring a fence on a hillside or vehicles on a bridge. Without strong tilt capability, important details could be missed.

A professional PTZ system can move across 360° horizontally without stopping, and tilt up or down from +90° to -90°. With speeds of up to 100°/s for pan and 60°/s for tilt, plus hundreds of preset angles and multiple tracking routes, the camera is fast and efficient. Vertical flexibility means operators do not need to physically move the device to follow activity across difficult terrain.

Factors Influencing Tilt Range Performance

1. Mechanical Design and Motor Precision

The way a PTZ camera tilts depends mostly on its inner mechanical design. Motors with fine accuracy allow smooth transitions while keeping the exact angle steady. Some cameras reach preset positions very quickly, with tilt speeds around 60°/s. During manual operations or automatic patrols, tilt speed can range from 0° to 40°/s, which gives operators more control.

2. Environmental Resistance and Stability

Cameras outdoors must face weather challenges: extreme heat or cold, strong winds, moisture, or dust. A solid protective case is necessary. An IP66-rated enclosure ensures the device can keep working in tough conditions. For example, many units remain reliable in temperatures from -35°C up to +55°C, with humidity near 90%. This means the tilt motor will continue moving properly even in deserts, snowy mountains, or coastal regions.

3. Integration with Long-Range Zoom and Tracking

When tilt is paired with long-range zoom, accuracy becomes very important. At 52x optical zoom, even the smallest error can shift the image off target. A 6.1–317 mm lens provides wide adaptability, but it requires motors that keep zoom and tilt aligned during movement. This balance guarantees that an operator can stay focused on a subject while the camera moves.

Overview of SHUOXIN’s Outdoor PTZ Camera Solutions

SHUOXIN develops surveillance systems made for demanding outdoor work, such as maritime patrols, border monitoring, or highway traffic control. The company combines strong mechanical design with advanced optics and multi-sensor features. Their PTZ cameras are rugged, precise, and supported by custom service and technical consultation.

Spherical Photoelectric High-Definition PTZ Camera

This model uses a dome-shaped design that improves balance and seals the device from environmental stress.

Tilt rotation: -45° to +45°

Pan rotation: 0–360° endless spin

These specifications allow coverage of wide areas, even when the camera is fixed on towers or vehicle masts. Extra features include thermal imaging with both fixed focus and zoom, temperature monitoring, and tools that sharpen image clarity. This makes the camera useful in low-light conditions, at night, or in fog.

Typical uses: oil field monitoring, border checkpoints, maritime rescue. In each case, strong tilt performance supports visibility across different elevations.

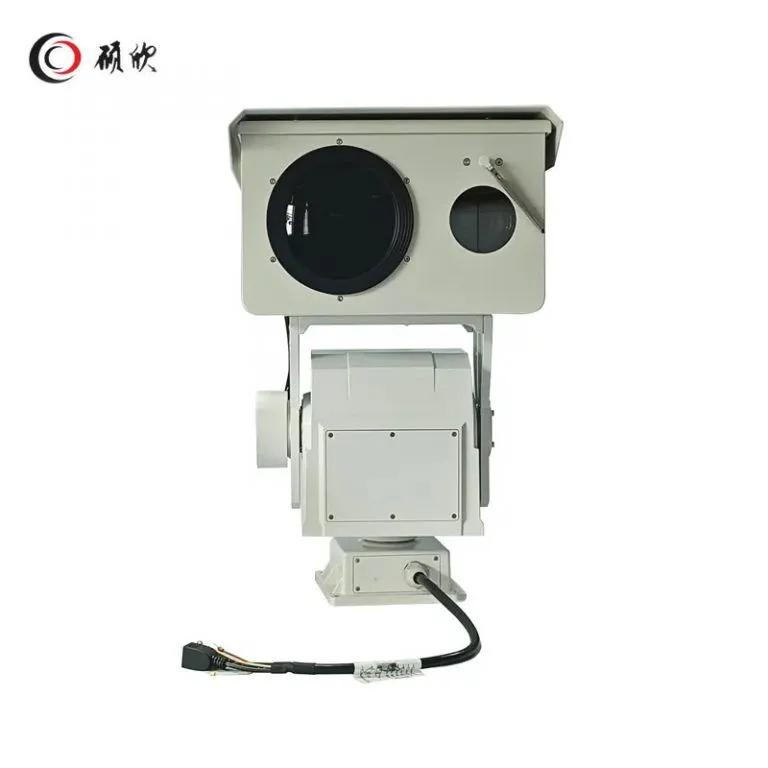

Bi-spectral Long Range Thermal Imaging PTZ Camera

For missions requiring both visible and thermal imaging, this model provides a tilt range of ±90°.

Model name: WL-TX30-HD-RCX

Features: combines high-resolution visible imaging with advanced thermal detection.

Thermal system: 640×512 vanadium oxide detector, <35mK sensitivity.

This allows accurate detection of heat signatures in dark or foggy conditions. With endless 360° pan and wide vertical tilt, the camera avoids delays from mechanical repositioning. This is essential in fast-moving operations, such as tracking vehicles or aerial objects.

? Explore more here: Bi-spectral long range thermal imaging PTZ camera

Comparative Analysis of Tilt Capabilities

What separates these devices from ordinary PTZ cameras is not only the wide tilt angle, but also how effectively the angle is applied in real-world tasks.

Extended elevation coverage: Cameras can be mounted on uneven ground without losing sight of subjects above or below.

Sensor integration: The systems connect with radar and target acquisition through RS485 protocols. This helps build coordinated strategies in complex networks.

Optimizing Surveillance Strategy Through Advanced Tilt Control

Modern control interfaces allow operators to design automated patrol routes. These routes can sweep vertically across barriers, hills, or tall buildings without needing manual input. For large security zones, like freight yards or military facilities, this is very efficient.

Algorithms for target locking further enhance tilt performance. They keep focus on moving objects that change elevation, whether drones, vehicles on hills, or people moving upstairs.

SHUOXIN’s Commitment to Professional Surveillance Solutions

SHUOXIN is recognized not only for solid hardware but also for complete system support:

Custom designs based on user requirements.

Compatibility with ONVIF and other protocols.

Ongoing service including firmware updates delivered online via RS485.

If a project demands durable outdoor PTZ cameras with powerful tilt design, SHUOXIN provides expert consultation and field-tested solutions.
