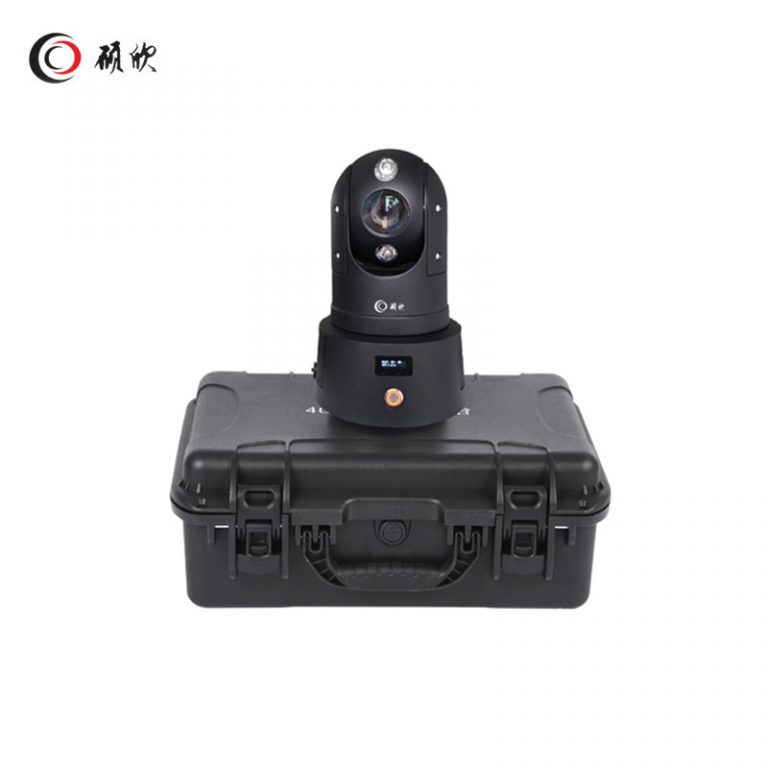

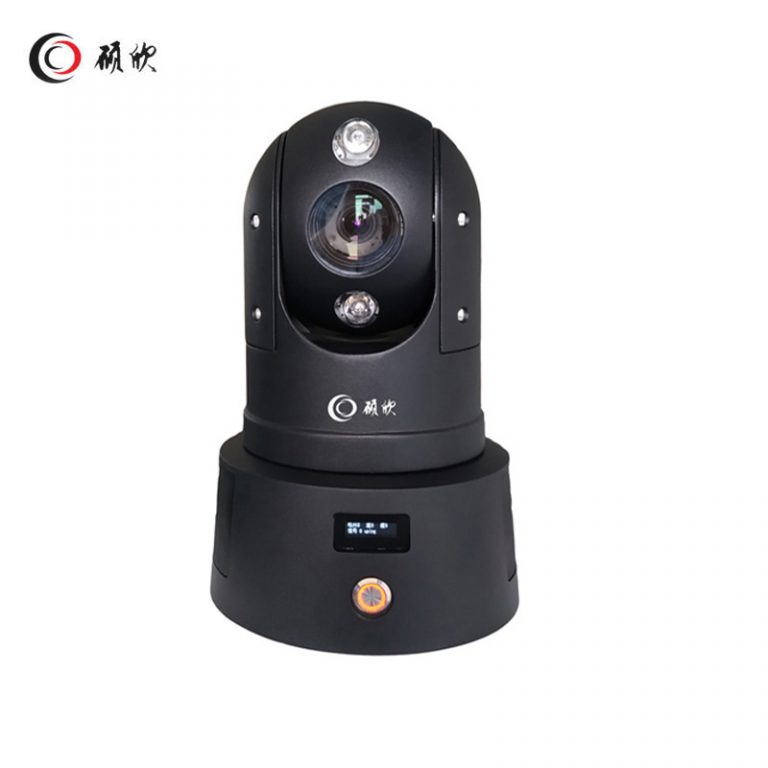

WL-HLC-SX4G-IR is a portable 4G/Wi-Fi PTZ for temporary monitoring and emergency command. Define the uplink, stream destination, placement and field-power method before dispatch.
WL-HLC-SX4G-IR supports temporary monitoring with 1080p video, H.265/H.264, dual streams, 4G, Wi-Fi AP/STN, GPS/Beidou, SD storage up to 128 GB, local monitoring and PTZ control. Placement options include its magnetic base, a telescopic tripod or a vehicle position.
Select WL-HLC-SX4G-IR around temporary uplink and stream plan. Define that task before comparing options.
Build the operator sequence around temporary uplink and stream plan; state the view, detail and mode change needed.
Investigation, public safety, fire response, traffic and insurance-claim field work are identified uses. The deployment team still has to select the uplink, physical placement and field-power method.
Put magnetic/tripod placement on the drawing and leave unresolved mechanics pending.
Map 4G, Wi-Fi and RJ45 to host functions one by one rather than relying on names.
Check the charging and external-power arrangement; the battery-runtime value remains pending.
Send the temporary uplink plan, stream requirement, magnetic or tripod placement and chosen 4G, Wi-Fi or RJ45 route. Request written confirmation of the battery-runtime value.
| Product Name | Wifi 4G HD PTZ Camera | |
| Operation system | Linux | |
| Video | Video compression format | H.265/H.264 Video compression coding |
| Dual stream | Main sub-stream | |
| Resolution | 1080P/720P/D1 | |
| Preview function | Support | |
| Storage | Local storage | 1 SD card, max support 128G |
| Wireless network | 4G/3G | Support dual 4G module, support the whole network or private network agreement |
| WIFI | Built-in WIFI module，support 802.11b/g/n | |
| Hotspot mode | Support 4G AP hotspot mode，support connect router STN mode | |
| Positioning | GPS | Built-in GPS |
| Expansion interface | RJ45 network interface、charging interface | |
| Camera | Image sensor | 1/2.8″ Progressive Scan CMOS |
| Signal system | PAL/NTSC | |
| Illumination | 0.005Lux @(F1.2,AGC ON) Color
0.001Lux @(F1.2,AGC ON) White black |
|
| Day/night | ICR ir filter type | |
| Electronic shutter | 1/1s ~ 1/30,000s | |
| Digital zoom | 16X | |
| Resolution | 1920×1080/1280*720 25fps/30fps | |
| White balance | Auto / manual / sunny / cloudy / dusk / incandescent / sodium / fluorescent / one tracking / automatic tracking | |
| 3D Noise reduction | Support | |
| Optical zoom | 20X | |
| IR | 60-80M | |
| PTZ protocol | PELCO-D/P | |
| PTZ | Pan rotation angle | 360° |
| Tilt rotation angle | -20°~90° | |
| Battery | Large capacity lithium battery pack, the remaining power tips | |
| Power Supply | Charging time | <5 hours |
| Temperature | -15℃～ +50℃ | |
| Working environment | Humidity | <90% |
| Measure | 268*146mm(Hmax*Dmax) | |
| Weight | Net weight：4kg | |
| Gross weight：10kg | ||
Related products are grouped in the Rapid Deployment Dome PTZ Camera category. Compare the imaging task, mounting, power and control route together rather than selecting on one distance or zoom figure.
Begin with temporary uplink and stream plan.
Check 4G, Wi-Fi and RJ45 against required host functions.
Show magnetic/tripod placement, cables and clearances.
The battery-runtime value remains pending until written confirmation.
Choose the uplink before the unit reaches the site. A 4G route, Wi-Fi AP/STN mode and RJ45 connection solve different field arrangements, so the request should name the primary path and any required fallback. The 1080p dual-stream plan then needs to match the receiving and storage workflow.
Show whether the camera will use its magnetic base, a telescopic tripod or a vehicle position. The drawing should include PTZ movement, cable access and the working area around the temporary support. GPS/Beidou positioning and local monitoring can be assigned to the deployment procedure where required.
State the charging or external-supply method and keep the battery-runtime value pending until written confirmation. The deployment plan should also show how the unit will be recharged between assignments. SD storage up to 128 GB is a separate capacity fact and does not define operating time.
Before dispatch, verify the selected uplink, stream destination, physical placement and power plan. Confirm that the magnetic or tripod arrangement suits the actual location. The battery-runtime value remains pending and requires written confirmation before it is used to schedule field coverage.
Prepare the SD card and local-monitoring role separately from the live uplink. GPS/Beidou data, PTZ control and video delivery should each have a named destination in the field procedure. This keeps a temporary deployment understandable when the operator changes from 4G to Wi-Fi or RJ45.
Use Contact Us to send the uplink plan, stream destination, placement drawing and power method. Ask for the battery-runtime value and the planned field charging procedure in the written response.
