50MナイトビジョンPTZドームカメラ

Product Overview

WL-HLC-HD-IR is a compact vehicle dome with 2 MP imaging, 33× zoom and a 50 m infrared rating. It provides continuous 360° pan, -20° to +90° tilt, ONVIF Profile S/G, web or RS485 control, IP66, DC 10.8–18 V input and a 2.5 kg weight. Shock absorbers, heated glass and wiper support are listed.

Select WL-HLC-HD-IR around 50 m IR scene and vehicle voltage. Define that task before comparing options.

Set the Viewing Task

Build the operator sequence around 50 m IR scene and vehicle voltage; state the view, detail and mode change needed.

Vehicle and marine surveillance, law-enforcement, emergency, fire-control and ambulance installations are identified uses. The specific vehicle determines voltage behavior, dome clearance and the night scene that must be evaluated.

Plan Movement and Mounting

Put 2.5 kg dome clearance on the drawing and leave unresolved mechanics pending.

Choose Power and Control

Map web or RS485 to host functions one by one rather than relying on names.

Check installed power and cabling; keep scene-dependent IR separate until confirmed.

Prepare the Configuration Request

Send 50 m IR scene and vehicle voltage, 2.5 kg dome clearance and web or RS485; flag scene-dependent IR for confirmation.

Selection Guidance

Use the Vehicle PTZ Camera category to compare mobile PTZ choices. For WL-HLC-HD-IR, review the 50 m infrared task together with vehicle voltage, dome clearance and the selected web or RS485 control path.

What is the first decision for WL-HLC-HD-IR?

Begin with 50 m IR scene and vehicle voltage.

Which integration items need checking?

Check web or RS485 against required host functions.

What belongs on the mechanical drawing?

Show 2.5 kg dome clearance, cables and clearances.

Which item must remain pending?

Keep scene-dependent IR unresolved until written confirmation.

Match the Dome to the Vehicle

The 50 m figure is the listed infrared rating, not a promise about target detail in every road scene. Define the required night view, ambient light and camera position before using that rating in a selection. Daytime framing should also account for the 33× optical zoom and the movement needed during patrol work.

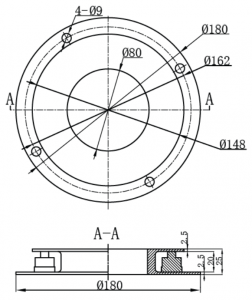

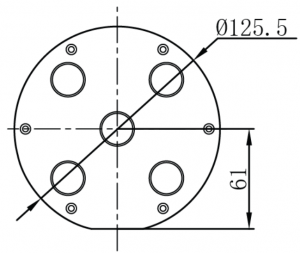

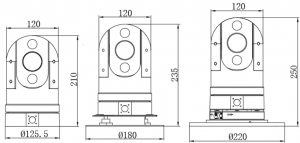

Use the 2.5 kg weight and dome envelope on the roof or console drawing. Check the -20° to +90° tilt range against bodywork, lamps and other equipment around the camera. Shock absorbers, heated glass and wiper support are listed features, but the vehicle still needs a practical fixing surface and cable entry.

Power must remain within the stated DC 10.8–18 V input at the camera. Select web control, RS485 or both according to the vehicle system, then identify which ONVIF Profile S/G functions are needed at the receiving side. Compatibility with a specific recorder is not implied.

Vehicle Integration Sign-Off

Sign off the WL-HLC-HD-IR package after the night-view requirement, supply range and dome clearance agree across the inquiry and drawing. Verify the chosen control path and cable entry on the actual vehicle layout. Treat scene performance beyond the stated infrared rating as a project question, not as an automatic result.

Send WL-HLC-HD-IR Project Details

Use お問い合わせ to send 50 m IR scene and vehicle voltage, the drawing and required functions. Identify scene-dependent IR as pending.
