SHUOXIN’s high-res PTZ cameras, like the WL-HD-TW10 with 2MP and 33x optical zoom, nail tiny details like license plates or faces, even in the dark with 150m–800m night vision. They’ve got cool tricks like noise reduction, auto-tracking, and easy hookup to security systems, staying sharp in rough weather for mobile patrols or fixed setups.
The Importance of Image Resolution in Security Surveillance
How High Resolution Enhances Detail Recognition
When security teams monitor important outdoor spaces—such as highways, power stations, or moving command vehicles—image resolution is not just another feature. It is something that makes a direct difference. Without enough clarity, small but important details can be missed.
High-resolution PTZ cameras are built for this challenge. They can capture information such as license plates, faces, or small movements, even when the subject is far away. For example, the WL-HD-TW10(HD IP) includes a 1/2.8” progressive scan CMOS sensor. With its 2-megapixel resolution (1920×1080), it produces HD video that holds on to fine details. This level of sharpness makes sure valuable evidence is not lost.
The Role of Resolution in Forensic Evidence Collection
After an incident, investigators often go back to the recorded video. If the video is unclear, then identifying suspects or reviewing the timeline of events becomes much harder. That is why high-definition footage is a key part of forensic evidence.
This PTZ system supports H.265, H.264, and MJPEG compression. It also has 3D noise reduction and several adjustable settings such as corridor mode, brightness, and sharpness. These options help balance the need for smaller file sizes with the need for strong image quality. Enforcement teams can then extract useful details without worrying about wasted storage space.
Key Features That Define a High-Resolution PTZ Camera
Optical Zoom Capabilities and Their Impact on Clarity
Surveillance often covers very large areas. When operators need to look across hundreds of meters, optical zoom is the tool that makes it possible.
The WL-HD-TW10(HD IP) camera comes with a 33x optical zoom and a 16x digital zoom. The 5.5–180mm motorized lens can shift from a wide 60.5° angle to a narrow 2.3° view. This means operators can zoom in on distant objects without losing clarity, unlike digital zoom which only enlarges pixels.
Sensor Quality and Its Role in Image Precision
The sensor is the core of any surveillance camera. A progressive scan CMOS sensor ensures that moving objects do not appear distorted. This is especially important when monitoring vehicles or individuals on the move.
Even in dark surroundings, the sensor performs well. With visibility down to 0.001 Lux in color and 0.0005 Lux in black-and-white, the camera can still provide useful footage. This ensures dependable performance both during daylight and in near-darkness.
Frame Rate and Motion Clarity in Surveillance Footage
Fast-moving targets create special challenges. If the frame rate is too low, then the image can become blurred. That can make it impossible to identify a car or a person running.
This PTZ camera keeps a steady frame rate while maintaining HD resolution. The result is smoother motion capture that keeps details intact, even during high-speed activity.
Low-Light Performance: A Critical Factor for Night Surveillance
Surveillance at night is often where cameras prove their worth. Without strong low-light ability, the effectiveness of a system is cut in half.
Infrared Technology and Night Vision Range
Infrared technology gives cameras the ability to “see” in the dark.
Advantages of 150M Night Vision Vehicle PTZ Cameras from SHUOXIN

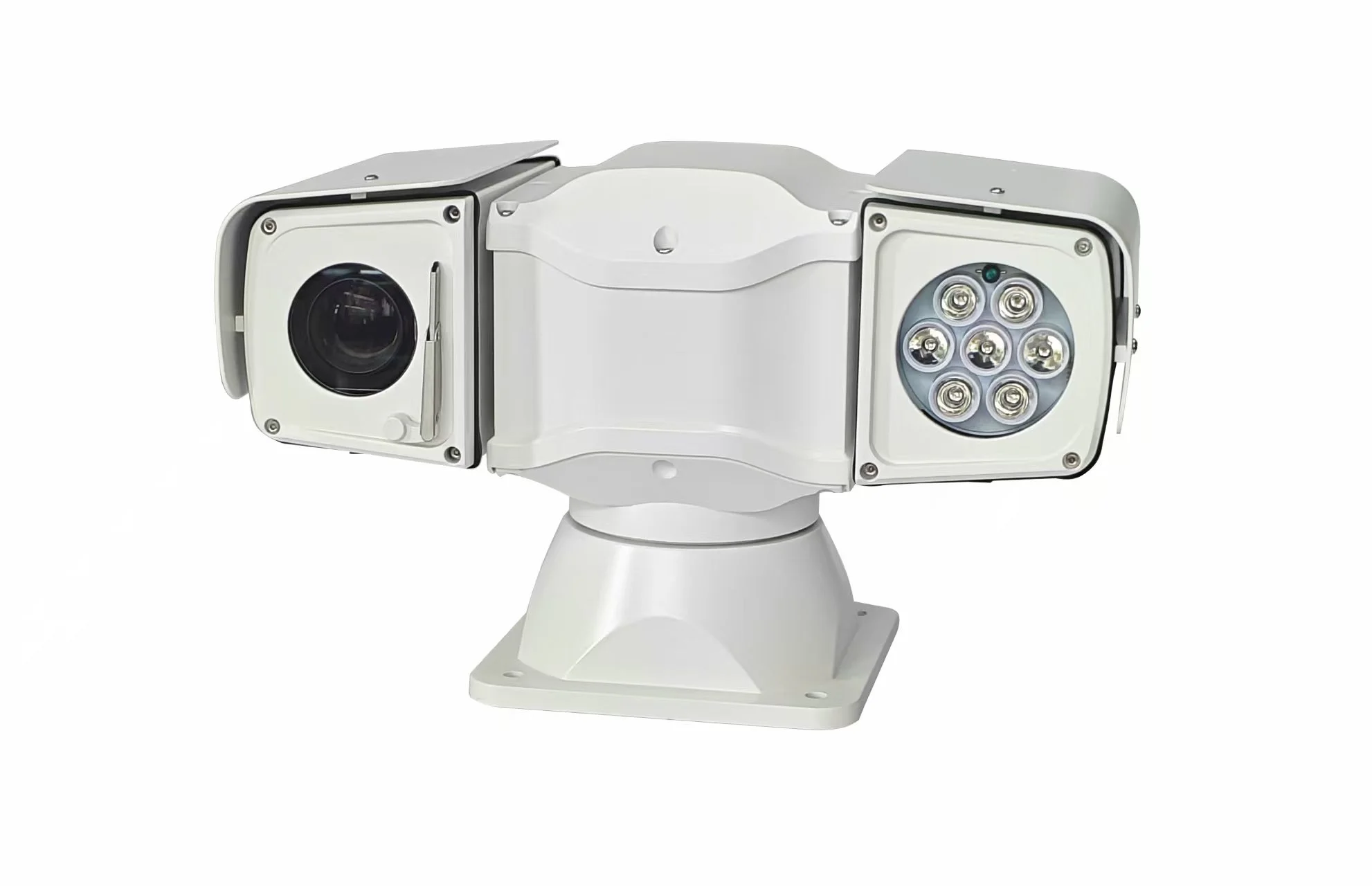

The SHUOXIN 150M night vision ptz camera uses IR LED lighting to reach distances of 150 meters. This allows officers to see clearly across large outdoor zones such as highways or inspection areas during the night.
Extended Visibility with 500m Night Vision PTZ Cameras

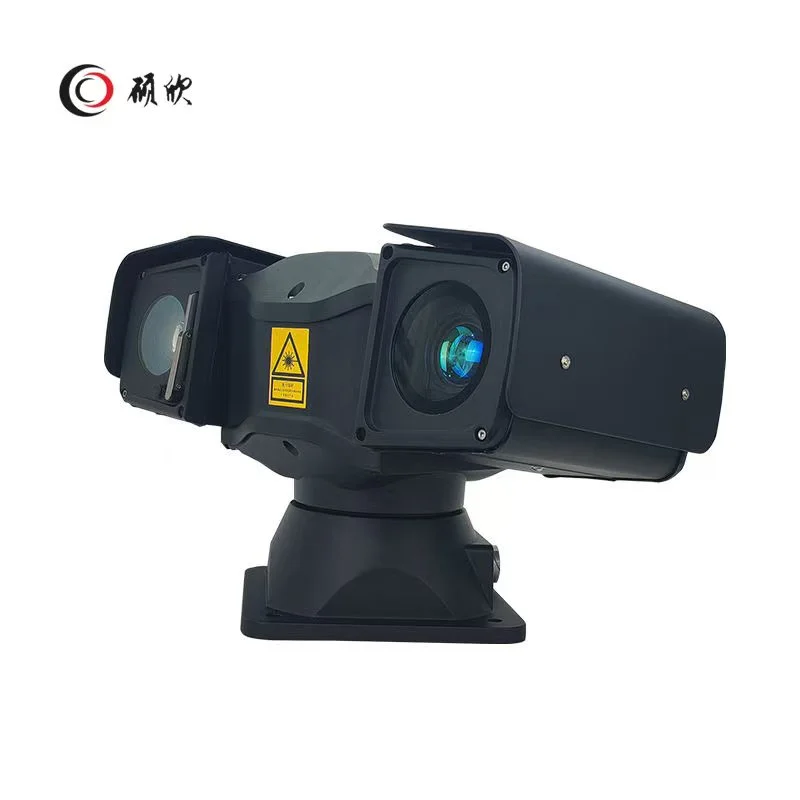

For longer-range operations, SHUOXIN also provides PTZ cameras that extend visibility up to 500 meters. These cameras use an 808nM laser wavelength with balanced light spread and steady beam power. The lighting is even, with no speckle, which means clear coverage over a large field of view.
Image Noise Reduction and Light Sensitivity
Low-light performance is not only about infrared range. Noise in the picture can ruin useful detail. This is why advanced noise reduction matters. The included 3D noise reduction technology helps keep images clean and sharp, making footage more reliable in dark scenes.
Advanced Tracking and Monitoring with PTZ Functionality
Fixed cameras are limited. PTZ cameras, however, can move and track subjects.
Pan-Tilt-Zoom Mechanism for Wide-Area Coverage
This system supports a 360° endless rotation and a tilt range of ±90°. In practice, this means no blind spots and full coverage of the area. This is especially valuable for perimeter defense or moving patrol units.
Auto-Tracking and Smart Detection Algorithms
Modern PTZ cameras can also make smart choices on their own. With detection features, they can recognize intrusions, loitering, or unusual gatherings. They can also detect faces and sounds.
These built-in AI functions help reduce false alerts. They also allow operators to focus on real threats, making the system more efficient.
Integration with Security Systems and Remote Monitoring
Cameras must work smoothly with the rest of a security system. They also need to allow remote access.
Network Compatibility and Real-Time Streaming
These PTZ systems are ONVIF-compatible. That means they can connect with third-party platforms. Operators can use SDK, web control, or RS485 interfaces. The flexibility is useful for both central stations and mobile units.
Storage Solutions and Video Management Systems
By using H.265 compression, these systems cut down bandwidth needs while keeping video quality. This is important when streaming video from areas with weaker networks.
SHUOXIN’s Commitment to High-Performance Surveillance Solutions
Surveillance work is rarely done in perfect conditions. From hot desert roads to cold mountain passes, cameras must perform in harsh environments.
SHUOXIN specializes in vehicle-mounted PTZ cameras for law enforcement, emergency teams, and inspection units. Their systems are built for reliable performance under pressure.
Product Reliability in Harsh Environments
The PTZ cameras are IP66-rated. They can handle -35°C to +55°C, up to 90% humidity, and 4G impact resistance. This makes them tough enough for outdoor use in almost any climate.
Weatherproof Housing and Anti-Vibration Design
Both the 150M and 500M models have shock absorbers and anti-fog technology. The glass prevents fogging when temperatures shift quickly. This ensures visuals remain clear at all times.
Long-Distance Monitoring for Mobile Platforms
Mounted on patrol or inspection vehicles, these PTZ cameras give quick and flexible coverage. They are perfect for moving teams that need reliable vision over long distances.
Professional Support and Customization Services from SHUOXIN
Every mission has its own requirements. Some need long range, while others need mobility or stronger detection.
Tailored Solutions for Industry-Specific Requirements
SHUOXIN cameras can be updated online through RS485 upgrades. This allows operators to adjust programs and scale systems as their needs grow.
Technical Support, Installation Assistance, and After-Sales Service
The company also provides strong technical support. From installation to after-sales service, their team helps ensure the system stays reliable.
Contact Information for Consultation and Product Inquiries
Anyone interested can contact SHUOXIN directly through their website. This is the best way to request details or discuss custom configurations.
FAQ
Q: Why is optical zoom better than digital zoom for long-distance viewing?
A: Optical zoom changes the lens physically, keeping image clarity. Digital zoom only enlarges pixels, which reduces detail.
Q: Can these PTZ cameras work in extreme weather?
A: Yes. They are IP66-rated, with strong weather resistance. They can also operate in very cold or hot conditions and have anti-fog systems.
Q: What is the night vision range of these cameras?
A: Depending on the model, up to 150m with IR LEDs or up to 800m with laser night vision.
