Why Do Long Range PTZ Camera Specifications Matter?
Buying a テレ雲台カメラ is not just about asking, “How far can it see?” In outdoor projects, the real question is whether the camera can keep a clear image at distance, move smoothly, resist bad weather, and connect to your current platform.
The security camera knowledge base notes that modern video surveillance now combines optical imaging, network transmission, intelligent control, sensors, and remote operation, so camera selection should match the whole system, not only the lens.
For coastal surveillance, border monitoring, port security, highway observation, forest fire monitoring, or oilfield perimeter surveillance, one wrong specification can cause blurred images, lost targets, or costly maintenance. A long range PTZ camera buying guide should help you check the details before price comparison starts.
What Features Should You Check Before Buying a Long Range PTZ Camera?
A good outdoor long range PTZ camera should give you distance, stability, night detection, control accuracy, and reliable operation. Here are the 10 features that matter most for B2B buyers.
1. Optical Zoom Range
Start with the optical zoom range, not digital zoom. A 52x optical zoom PTZ camera can bring distant targets closer while keeping usable image detail. Shuoxin’s gyro stabilized photoelectric high-definition pan tilt camera uses a 6.1–317mm lens with 52X Optical Zoom, which fits long distance observation better than short-range devices.
2. Visible Camera Resolution
A 1080P HD visible camera still matters because operators often need details such as vessel shape, road activity, perimeter movement, or equipment status. Resolution alone is not everything, though. Check low illumination, wide dynamic range, signal-to-noise ratio, and autofocus behavior. In the real field, a small glare patch at sunset can ruin a picture. It happens more often than people admit.
3. Thermal Sensor Resolution

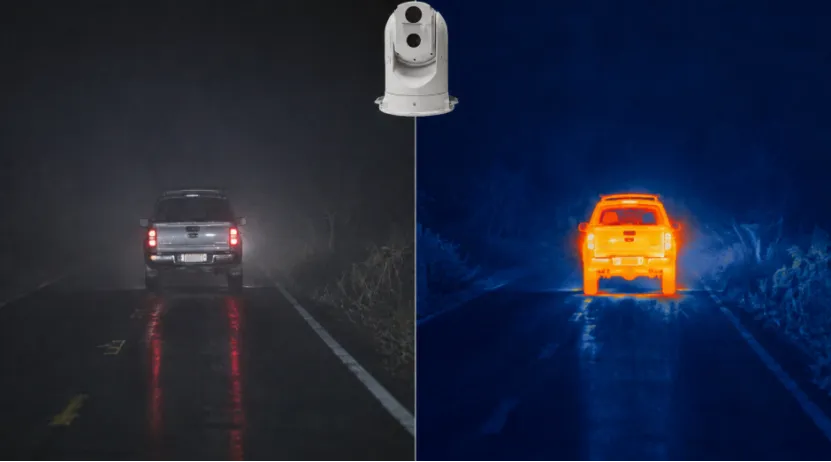

A. 熱PTZカメラ helps when visible light becomes weak. Fog, haze, darkness, and long-distance heat detection all require more than normal imaging. A 640×480 thermal imaging camera gives better target separation than lower-resolution thermal modules.
The knowledge base explains that thermal imaging perimeter systems can support all-weather detection and help PTZ cameras track and zoom in on possible threats across large perimeters.
4. Laser Ranging Function
A laser ranging PTZ camera can estimate target distance, which is useful when operators handle marine surveillance camera projects, border surveillance camera systems, or high altitude observation camera sites. Shuoxin offers optional 1000m laser ranging, with 1m ranging accuracy, so you can judge distance instead of guessing from the screen.
5. Gyro Stabilization
A gyro stabilized PTZ camera is important on ships, towers, and wind-exposed platforms. Without stabilization, zoomed images shake badly. Shuoxin uses biaxial gyroscope stabilization and a mechanical image stabilization PTZ camera design, helping reduce image movement caused by vessel motion or environmental turbulence. The product is listed for ships and high-altitude observation, where attitude sensors adjust camera posture automatically.
6. Pan Tilt Zoom Control
Strong pan tilt zoom control helps operators cover wide areas and follow moving targets. Look for pan range, tilt range, pan and tilt speed, and steady state accuracy. A 360 degree continuous rotation PTZ camera reduces blind spots, while fast rotation helps in highway surveillance camera and port surveillance camera projects.
7. Preset Positions and Cruise Scanning
256 preset positions are not just a number on a datasheet. They help operators jump between gates, channels, coastlines, towers, or fence sections. A cruise scanning PTZ camera can patrol key routes, while a 3D positioning PTZ camera makes long-distance target locking easier.
The knowledge base also describes preset settings, scanning, 3D patrolling, path memory, auto-tracking, and alarm linkage as key intelligent PTZ functions.
8. Protocol Compatibility
An ONVIF compatible PTZ camera is easier to connect with many video management systems. Also check GB/T 28181 protocol support if your project needs that platform standard. An RTSP video stream may show video, but it may not give full PTZ control. That small point can become a big headache during commissioning.
9. Weatherproof Housing
For an IP67 PTZ camera, weather resistance means more than surviving rain. A real weatherproof PTZ camera should handle fog, water, salt air, vibration, and outdoor dust. Shuoxin’s unit uses an all-metal structure with anti fog PTZ camera performance, waterproof design, corrosion resistant PTZ camera housing, seismic resistant PTZ camera structure, IP67 protection, and 6KV lightning protection.
10. Working Temperature and Power
Check -40℃ to 70℃ working temperature, DC24V power input, and 60W maximum power consumption before installation planning. These details decide cable selection, power supply design, and long-term operation. Remote area surveillance camera projects, especially those with limited power planning, should never skip this step.
How Does Shuoxin Support Professional Long Range PTZ Camera Projects?
シュオシン is a technology-based manufacturer focused on intelligent security monitoring system equipment. Its product range covers vehicle PTZ camera, marine PTZ camera, highway PTZ camera, heavy load PTZ series, camera modules, and related security devices.
The company combines design capability, production management, testing equipment, and field-oriented product development, which makes it a practical long range PTZ camera supplier for outdoor surveillance projects. Its professional long range PTZ camera line is built around stable imaging, durable structure, and system connection, not just a nice-looking specification sheet.
For buyers comparing a long range PTZ camera manufacturer, that balance matters. You can review its product range through Shuoxin Security Cameras & Surveillance Systems.
Conclusion: How Should You Choose the Right Outdoor Long Range PTZ Camera?
The best long range PTZ camera is the one that matches your site risk. For moving platforms, choose a gyro stabilized PTZ camera. For night and fog, choose a dual spectrum PTZ camera or EO IR PTZ camera with strong thermal imaging.
For wide-area monitoring, check presets, cruise scanning, rotation range, and platform protocol. For harsh outdoor projects, housing, power, and temperature range deserve the same attention as zoom.
If you are asking how to choose a long range PTZ camera, start with these 10 points. It is a simple checklist, but it saves a lot of trouble later.
よくあるご質問
Q1: What Is the Most Important Feature in a Long Range PTZ Camera?
A: Optical zoom, stabilization, thermal imaging, and weatherproof housing are the most important. For outdoor projects, they work together.
Q2: Is Optical Zoom More Important Than Digital Zoom?
A: Yes. Optical zoom keeps more useful image detail. Digital zoom only enlarges the existing image.
Q3: Why Does a Long Range PTZ Camera Need Thermal Imaging?
A: Thermal imaging helps detect targets at night, in haze, or in low-visibility conditions where visible light may fail.
Q4: When Should You Choose a Gyro Stabilized PTZ Camera?
A: Choose it for ships, towers, coastal sites, and other places with wind, vibration, or platform movement.
Q5: What Weatherproof Rating Is Suitable for Outdoor PTZ Surveillance?
A: IP67 is a strong choice for outdoor long-range monitoring because it supports dustproof and waterproof protection in harsh environments.
